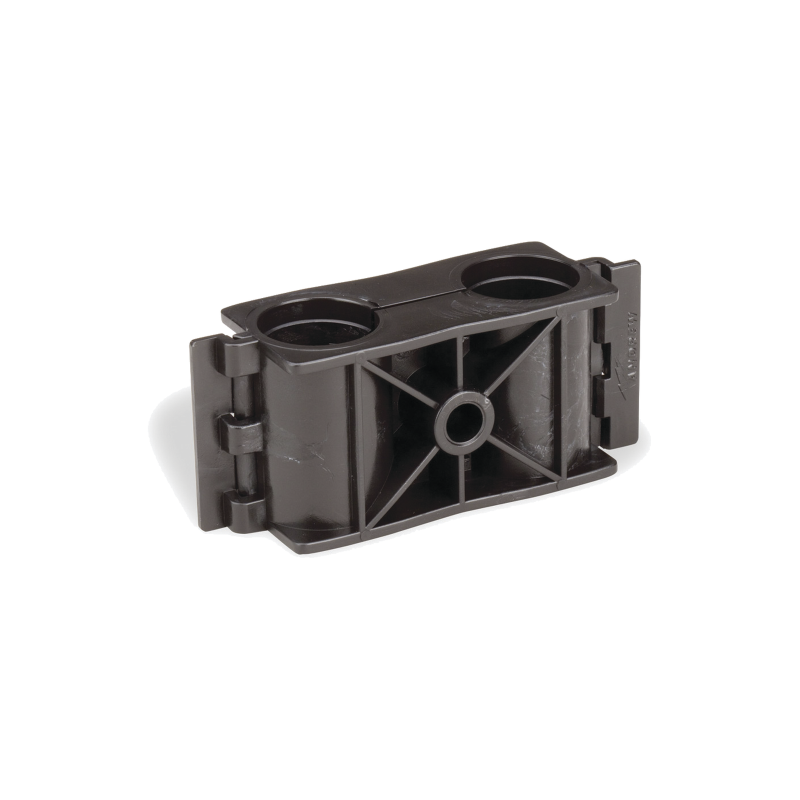

Double Click-on Hanger for 1/2 in Coaxial Cable
$491.38
Double Click-on Hanger for 1/2 in Coaxial Cable
Dimensions
- Nominal Size: 1/2 in
- Compatible Diameter, maximum: 16.256 mm , 0.640 in
- Compatible Diameter, minimum: 15.240 mm , 0.600 in
- Height x Length x Weight: 2.01 x 3.50 x 1.77 in (51.00 x 89.00 x 45.00 mm)
Electrical Specifications
- DTF Effect: 0.1 dB
- Return Loss Effect: 0.1 dB
General Specifications
- Hanger Type: Click-on hanger
- Cables per Hanger: 2
- Color: Black
- Material Type: Engineered plastic
- Maximum Stack Height: 3
- Ordering Note: CommScope® standard product in the United States and Canada
- Package Quantity: 10
Mechanical Specifications
- Mounting: Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod
- Operating Temperature: -40 °F to +185 °F (-40 °C to +85 °C)
- UV Resistance, minimum with no degradation: â¥100 hours exposure in accelerated UV life chamber
- Vibration Survival: â¥4 hours at resonant frequency
- Environmental Strength Capability: Double cable weight
Regulatory Compliance/Certifications
- Agency Classification: ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system
