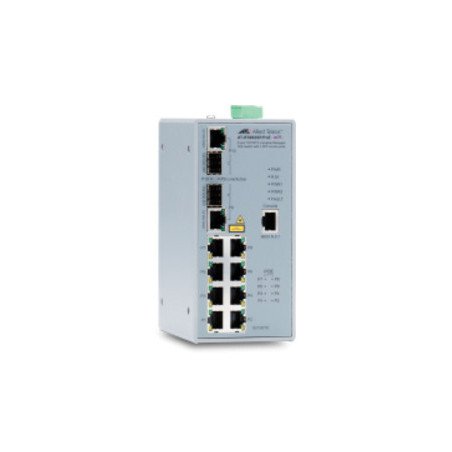

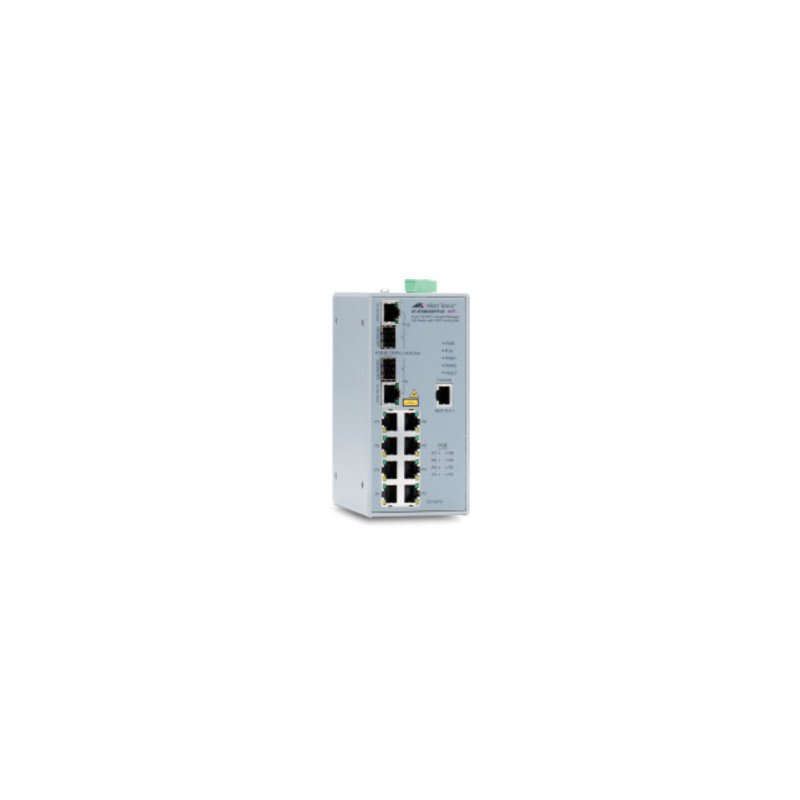

Switch Industrial PoE Administrable de 8 Puertos 10/100 Mbps + 2 Puertos SFP Combo, 120 W

Puertos:
8 puertos 10/100 Mbps.
2 puertos SFP Combo.
Throughput: 4.16 Mpps.

PoE:
IEEE 802.3af Power Over Ethernet (PoE).
PoE: 120 W.

Administración:
Web.
Interfaz de línea de comandos (CLI).
Telnet.
Monitoreo SNMP v1, v2c & v3.

Características:
Soporta SFPs de 100/1000 Mbps.
Hasta 8K MAC address.
Carcasa de metal con grado de protección IP-30.
Limite de ingreso y egreso de paquetes por puerto.
Spanning Tree (STP).
Rapid Spanning Tree (RSTP).
IGMP Snooping.

Características Físicas y Eléctricas:
Alimentación: 48 VDC.
Dimensiones: DIN rail, wall mount 115 x 72x 152 mm.
Peso: 1.42 Kg.
Temperatura de Operación: -40°C a 75°C.

Garantía 1 año, para un año adicional registra el producto en el siguiente link:
http://www.alliedtelesis.com/support/maintenance-and-warranty/register

The Allied Telesis AT-IFS802SP/POE (W) is a high performance and cost-effective industrial managed switch that meets the high reliability requirements of industrial network operations.

Performance
The AT-IFS802SP/POE (W) is a high performance and cost-effective industrial managed switch that meet the high
reliability requirements of industrial network operations.
The industrial switch provides a network manager some key features using the simple web-based management function
such as; port-based VLANs, IEEE 802.1p Qos, port trunking/link aggregation, port mirroring, priority queues and IEEE
802.1x security support. With support of up to 8k MAC addresses and a 1Mbit packet buffer the AT-IFS802SP/POE (W)
switch is an ideal option for integrating management into your network solution.

Securing the Network Edge
To ensure the protection of your data, it is important to control access to your network. Protocols such as IEEE 802.1x
port-based authentication guarantee that only known users are connected to the network. Unknown users who physically
connect can be isolated to a pre-determined part of your network offering guests such benets as Internet access while ensuring the integrity of your private network data.

Gigabit and Fast Ethernet SFP Support
The SFP Ports support both Gigabit and Fast Ethernet Small Form-factor Performance Pluggables (SFPs). This makes the switch an ideal family for environments where Gigabit ber switches will be phased in over time. This allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit. Support for both speeds of SFPs allows organizations to stay within budget as they migrate to faster technologies.

High Network Resiliency
The AT-IFS802SP/POE (W) industrial switch supports the X-Ring protocol that can help the network recover from
connection failure within 20ms, thus making the network system very resilient. The X-Ring algorithm is similar to
spanning tree protocol (STP) algorithm but its recovery time is faster than STP. In addition, Dual Homing and Couple Ring
Topology are also supported to further increase the network availability.

Allied Telesis AT-IFS802SP / POE (W) -80. Tipo de interruptor: Gestionado. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 8, Puerto de consola: RJ-45. Bidireccional completo (Full duplex). Tabla de direcciones MAC: 8000 entradas, Capacidad de conmutación: 5,6 Gbit/s. Estándares de red: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Energía sobre Ethernet (PoE). Montaje de pared
