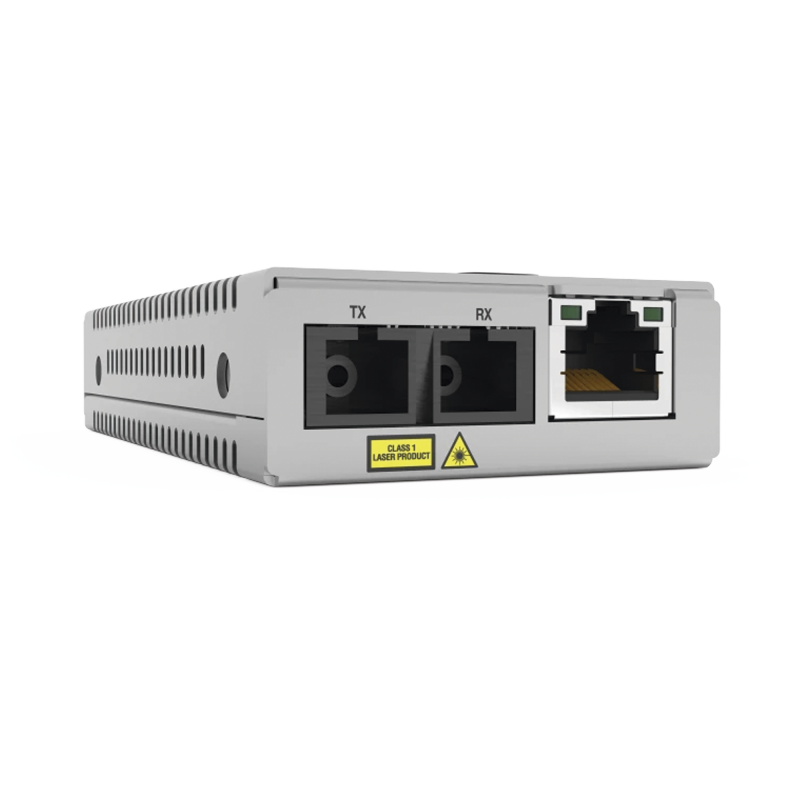

Convertidor de medios TAA (federal) 10, 100TX, 100fx, SC multimodo, multiregion PSU

This standalone mini media and rate converter features 10/100TX to 100FX conversion with a multi-mode SC fiber connector and supports up to 2 km. It is compatible with the MMCR18 rack-mount chassis.

Copper to Fiber Mini Media and Rate Converters
Overview
The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.

Extend Networks
The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).

VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.

Small and Flexible
The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.

Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.

Smart Link Restoration
Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.

Power Saving
The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.

Link Test
The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.

Allied Telesis AT-MMC200/SC-960. Rango máximo de transferencia de datos: 100 Mbit/s, Interfaz de convertidor de entrada: 10Base-T, 100Base-T, 1000Base-T, Interfaz de convertidor de salida: 1000Base-SX. Conector fibra óptica: SC, Tecnología de conectividad: Alámbrico. Distancia de transferencia máxima: 2000 m, Longitud de onda: 1310 nm, Estructura de modo de fibra: Multimodo. Color del producto: Gris, Certificación: CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI. Voltaje de entrada: 12 V, Corriente de entrada: 0.14 A, Consumo energético: 1,7 W

Rango máximo de transferencia de datos	100 Mbit/s
Interfaz de convertidor de entrada	10Base-T, 100Base-T, 1000Base-T
Interfaz de convertidor de salida	1000Base-SX
Estándares de red	IEEE 802.1Q
Tipo de interfaz ethernet	Ethernet rápido
Ethernet LAN, velocidad de transferencia de datos	10,100 Mbit/s
Tecnología de fibra de cableado ethernet	1000BASE‑SX
Jumbo Frames, soporte	Si
Soporte VLAN	Si
Sistema de dúplex	Completo
Conector fibra óptica	SC
Tecnología de conectividad	Alámbrico
Ethernet LAN (RJ-45) cantidad de puertos	1
Distancia de transferencia máxima	2000 m
Longitud de onda	1310 nm
Estructura de modo de fibra	Multimodo
Interno	No
Color del producto	Gris
Certificación	CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Voltaje de entrada	12 V
Corriente de entrada	0.14 A
Consumo energético	1,7 W
Ancho	56 mm
Profundidad	101,6 mm
Altura	21,8 mm
Peso	170,097 g
Intervalo de temperatura operativa	0 - 50 °C
Intervalo de temperatura de almacenaje	-15 - 65 °C
Intervalo de humedad relativa para funcionamiento	5 - 95%
Intervalo de humedad relativa durante almacenaje	5 - 95%
Altitud de funcionamiento	0 - 3048 m
Manual de usuario	Si
Manual de usuario	Si
Guía de instalación rápida	Si
Código de Sistema de Armomización (SA)	85176990
