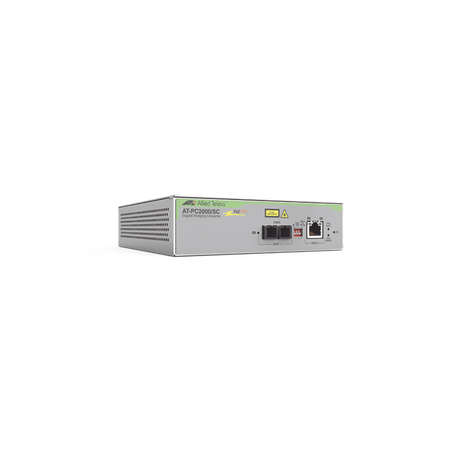

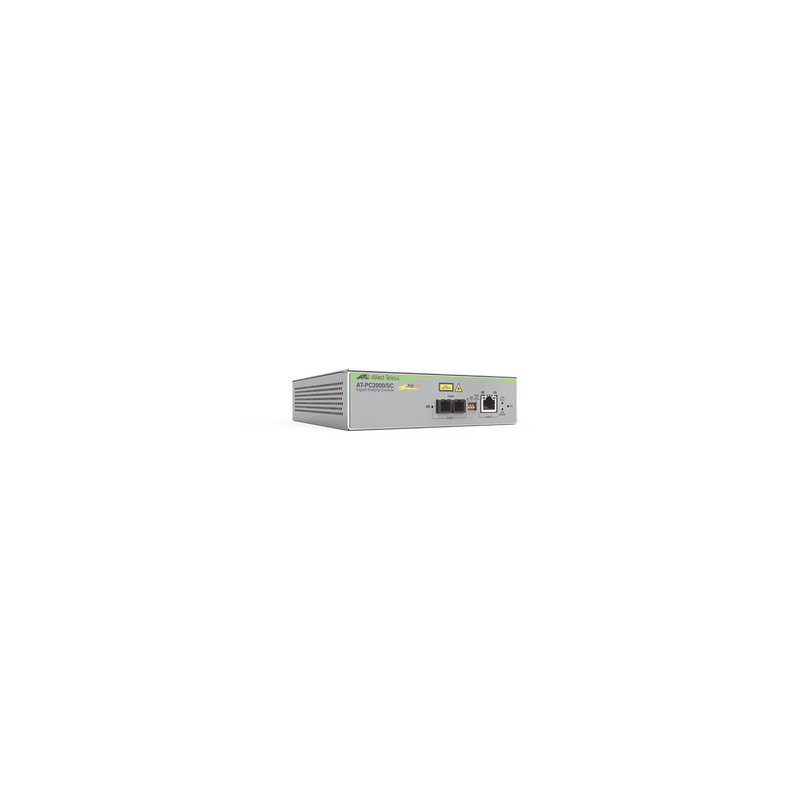

Convertidor de medios gigabit ethernet PoE+ a fibra óptica, conector SC, multimodo (MMF), distancia hasta 550 m
$8,310.34
Allied Telesis AT-PC2000/SC-90, 1000 Mbit/s, 14880 pps, 148880 pps, 1488000 pps, SC, Alámbrico
Powering Remote Devices
Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, etc., which are more
than 100m from a Power over Ethernet switch.
The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX, capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE+ Powered Device to operate without the need of any additional power source. All PoE+ Devices (IEEE802.3at compliant) are supported, as the PC200x PoE+ Series can deliver a full 30W of power to the remote device.
Remote Power Cycle
The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch
port in which the PC200/2000 Series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without
actually physical going to the location.
VLAN Support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000
Series switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets,
making them unsuitable for modern networks.
Small and Flexible
The small size and internal power supply of the PC200/2000 Series allows them to be used almost anywhere.
Smart MissingLinkTM (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Allied Telesis AT-PC2000/SC-90. Rango máximo de transferencia de datos: 1000 Mbit/s, Velocidad de redireccionamiento de paquetes (10 Mbps): 14880 pps, Velocidad de redireccionamiento de paquetes (100 Mbps): 148880 pps. Conector fibra óptica: SC, Tecnología de conectividad: Alámbrico. Distancia de transferencia máxima: 100 m, Longitud de onda: 850 nm. Indicadores LED: Actividad, Enlace, Red, PoE, Color del producto: Gris, Certificación: FCC Class B EN55022 Class A C-Tick CE. Voltaje de entrada: 100 - 240 V, Frecuencia de entrada AC: 50 - 60 Hz, Consumo energético: 35 W
Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, etc., which are more
than 100m from a Power over Ethernet switch.
The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX, capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE+ Powered Device to operate without the need of any additional power source. All PoE+ Devices (IEEE802.3at compliant) are supported, as the PC200x PoE+ Series can deliver a full 30W of power to the remote device.
Remote Power Cycle
The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch
port in which the PC200/2000 Series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without
actually physical going to the location.
VLAN Support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000
Series switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets,
making them unsuitable for modern networks.
Small and Flexible
The small size and internal power supply of the PC200/2000 Series allows them to be used almost anywhere.
Smart MissingLinkTM (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Allied Telesis AT-PC2000/SC-90. Rango máximo de transferencia de datos: 1000 Mbit/s, Velocidad de redireccionamiento de paquetes (10 Mbps): 14880 pps, Velocidad de redireccionamiento de paquetes (100 Mbps): 148880 pps. Conector fibra óptica: SC, Tecnología de conectividad: Alámbrico. Distancia de transferencia máxima: 100 m, Longitud de onda: 850 nm. Indicadores LED: Actividad, Enlace, Red, PoE, Color del producto: Gris, Certificación: FCC Class B EN55022 Class A C-Tick CE. Voltaje de entrada: 100 - 240 V, Frecuencia de entrada AC: 50 - 60 Hz, Consumo energético: 35 W
| Rango máximo de transferencia de datos | 1000 Mbit/s |
| Velocidad de redireccionamiento de paquetes (10 Mbps) | 14880 pps |
| Velocidad de redireccionamiento de paquetes (100 Mbps) | 148880 pps |
| Velocidad de redireccionamiento de paquetes (1 Gbps) | 1488000 pps |
| Jumbo Frames, soporte | Si |
| Auto MDI / MDI-X | Si |
| Guardar y remitir | Si |
| Conector fibra óptica | SC |
| Tecnología de conectividad | Alámbrico |
| Ethernet LAN (RJ-45) cantidad de puertos | 1 |
| Puertos de canal de fibra | 1 |
| Alimentación mediante Ethernet Plus (PoE +) Cantidad de puertos | 1 |
| Distancia de transferencia máxima | 100 m |
| Longitud de onda | 850 nm |
| Interno | No |
| Indicadores LED | Actividad, Enlace, Red, PoE |
| Color del producto | Gris |
| Certificación | FCC Class B EN55022 Class A C-Tick CE |
| Voltaje de entrada | 100 - 240 V |
| Frecuencia de entrada AC | 50 - 60 Hz |
| Consumo energético | 35 W |
| Energía sobre Ethernet (PoE) | Si |
| Potencia a través de Ethernet (PoE) Presupuesto | 30 W |
| Ancho | 155 mm |
| Profundidad | 149 mm |
| Altura | 40 mm |
| Peso | 748 g |
| Intervalo de temperatura operativa | 0 - 50 °C |
| Intervalo de temperatura de almacenaje | -25 - 70 °C |
| Intervalo de humedad relativa para funcionamiento | 5 - 95% |
| Altitud de funcionamiento | 0 - 3048 m |
| Adaptador AC incluido | Si |
AT-PC2000/SC-90
Ficha técnica
- Conector fibra óptica
- SC
- Distancia de transferencia máxima
- 100 m
- Interno
- No
- Longitud de onda
- 850 nm
- Rango máximo de transferencia de datos
- 1000 Mbit/s
Referencias Específicas
- Nº Pieza fabricante (NPM)
- AT-PC2000/SC-90
