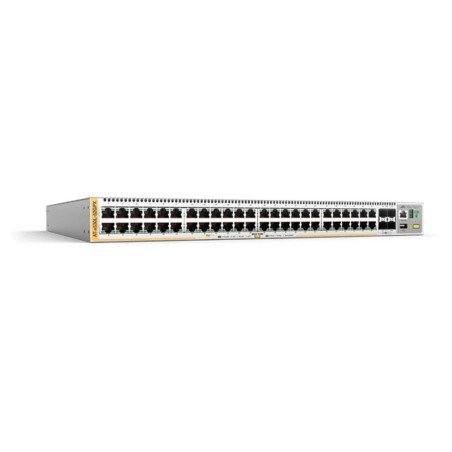

Switch PoE+ Stackeable Capa 3, 48 puertos 10/100/1000 Mbps + 4 puertos SFP+ 10 G, hasta 740 W, fuente redundante

Puertos:

48 puertos 10/100/1000 Mbps.

4 puertos SFP+ 10 G (2 sí son stacked).

FoRWarding rate: 130.9 Millones de paquetes por segundo (Mpps).

Switching fabric: 176 Gbps.

PoE:

IEEE 802.3af Power Over Ethernet (PoE) hasta 15.4 W por puerto.

IEEE 802.3at Power Over Ethernet plus (PoE+) hasta 30 W por puerto.

Potencia total: 370 W (1 fuente de poder) / 740 W (2 fuentes de poder).

Sistema operativo:

AlliedWare Plus™.

Administración:

Interfaz de línea de comandos (CLI).

Telnet.

SSH.

Monitoreo SNMP v1, v2c & v3.

Características generales:

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Soporte de Multicast -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

• 8 colas de prioridad.
• Limite el ancho de banda por puerto o por clase de tráfico.

Protocolos de ruteo:

Ruteo estático.

Border Gateway Protocol (BGP).

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

Licencia de Capa 3 Premium AT-FL-x530L-01.

Características de redundancia:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Características físicas y eléctricas:

Alimentación: 100-240 VAC, 47-63 Hz.

Dimensiones: 1 U Rack, 44 x 421 x 441 mm.

Peso: 6.7 kg.

Temperatura de Operación: 0 a 50° C.

Garantía:

1 año.

Ejemplo de una red empresarial de alto desempeño.

Stackable Intelligent Layer 3 Switch
The Allied Telesis x530L-52GPX stackable Layer 3 switch features high capacity, resiliency and easy management, making it the ideal choice for network access applications.

Overview
The Allied Telesis x530L-52GPX is a high-performing and feature-rich choice for today’s networks, featuring 48 Gigabit ports and 4 x 10 Gigabit uplinks. Combined with the ability to stack multiple units, the x530L-52GPX provides a versatile solution for enterprise applications.

Powerful network management
Allied Telesis Autonomous Management Framework™ (AMF) automates many everyday tasks including configuration management, easing the workload of modern networks. The entire network can be managed as a single virtual device with powerful centralized features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.

AMF secure mode increases network security with management traffic encryption, authorization and monitoring. AMF Guestnode allows third-party devices, such as IP phones and security cameras, to be part of the AMF network.

Network resiliency
Today’s converging online services means there is increasing demand for highly-available networks with minimal downtime. Allied Telesis VCStack™, in conjunction with link aggregation, provides a network with no single point of failure and application resiliency.

x530L-52GPX switches can form a VCStack of up to 4 units for enhanced resiliency and simplified device management. Mixed stacking allows the x530L-52GPX to stack with x530 Series Switches. Long Distance Stacking (VCStack LD), which enables stacks to be created over long distance fiber links, makes the x530L-52GPX the perfect choice for distributed environments too.

Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.

Reliable
The x530L-52GPX was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance can be performed without affecting network uptime.

Secure
A secure network environment is guaranteed. The x530L-52GPX offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.

Future proof
The x530L-52GPX ensures a future-proof network, with superior flexibility and the ability to stack multiple units. All x530L-52GPX models feature 10 Gigabit uplink ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands.

Environmentally friendly
The x530L-52GPX supports Energy Efficient Ethernet (EEE), automatically reducing the power consumed by the switch whenever there is no traffic on a port. This sophisticated feature significantly lowers operating costs by reducing the power requirements of the switch and any associated cooling equipment

Allied Telesis AT-x530L-52GPX-10. Tipo de interruptor: Gestionado, Capa del interruptor: L3. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 48. Bidireccional completo (Full duplex). Tabla de direcciones MAC: 16000 entradas, Capacidad de conmutación: 176 Gbit/s. Estándares de red: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE.... Energía sobre Ethernet (PoE). Montaje en rack
