Tarjeta Serial StarTech.com PEX2S553 - PCIe, 0, 46 Mbit/s, Alámbrico
search
  • Tarjeta Serial StarTech.com PEX2S553 - PCIe, 0, 46 Mbit/s, Alámbrico
  • Tarjeta Serial StarTech.com PEX2S553 - PCIe, 0, 46 Mbit/s, Alámbrico
  • Tarjeta Serial StarTech.com PEX2S553 - PCIe, 0, 46 Mbit/s, Alámbrico

Tarjeta Serial StarTech.com PEX2S553 - PCIe, 0, 46 Mbit/s, Alámbrico

$951.72
Entrega entre 1 y 3 días hábiles

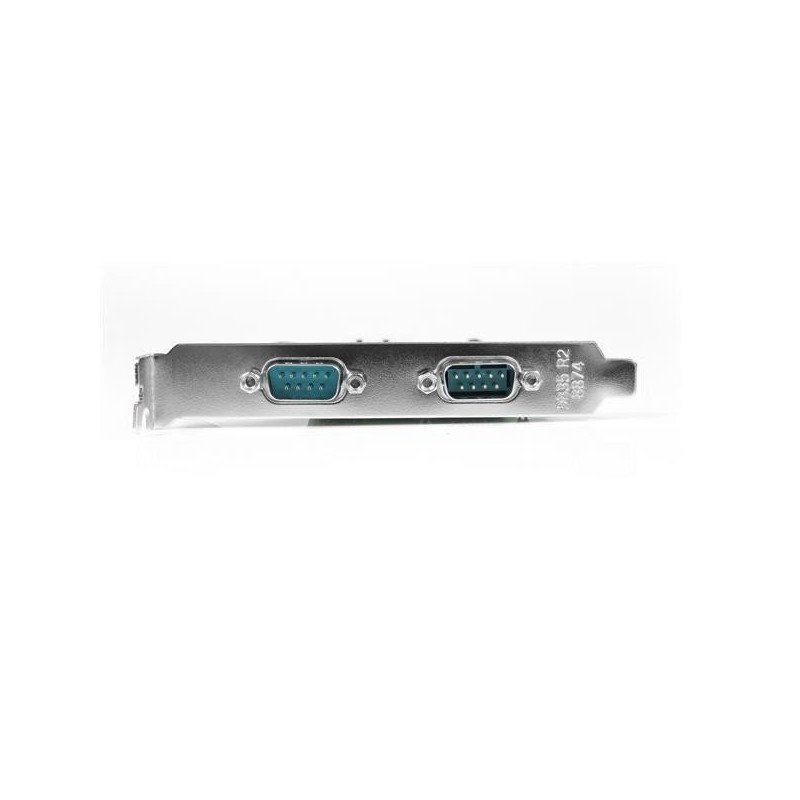

StarTech.com 2 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART, PCIe, Serial, PCIe 1.0, RS-232, Green, CE, FCC, REACH

Cantidad

Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slotThe PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vistaâ¢/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.This product is a replacement for our PEX2S552 card.Backed by a StarTech.com 2-year warranty and free lifetime technical support.

StarTech.com 2 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.0. Product colour: Green, Certification: CE, FCC, REACH. Chipset: ASIX - MCS9922CV-AA, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard,..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 120 mm, Depth: 105 mm, Height: 20 mm

Host interfacePCIe
Output interfaceSerial
Expansion card standardPCIe 1.0
Serial ports quantity2
Serial interface typeRS-232
Peripheral (Molex) power connectors (4-pin)1
InternalY
Product colourGreen
CertificationCE, FCC, REACH
ChipsetASIX - MCS9922CV-AA
Baud rate460.8 Kbit/s
FIFO (First In, First Out)128 B
Operating temperature (T-T)-10 - 80 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85%
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedY
Server operating systems supportedWindows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Other operating systems supportedDOS,Windows Embedded POSReady 2009,Windows Embedded Standard 2009,Windows XP Embedded
Sustainability certificatesRoHS
Width120 mm
Depth105 mm
Height20 mm
Weight61 g
Drivers includedY
ManualY
Package width145 mm
Package depth175 mm
Package height32 mm
Package weight151 g
Products per master (outer) case75 pc(s)
Master (outer) case width35.5 cm
Master (outer) case length69 cm
Master (outer) case height31 cm
Startech.Com
PEX2S553

Ficha técnica

Interfaz de salida
Serial
Interfaz del host
PCIe
Interno

Referencias Específicas

upc
065030841740
ean13
0065030841740
Nº Pieza fabricante (NPM)
PEX2S553
