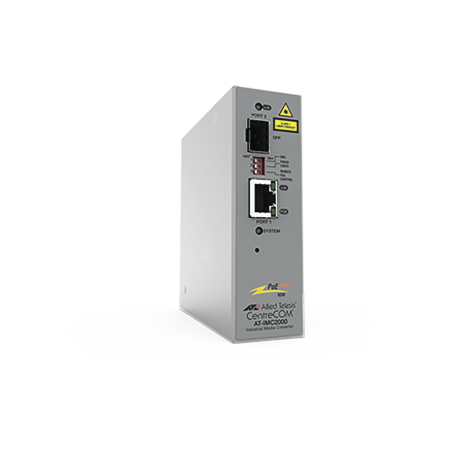

Convertidor de medios industrial PoE+ de 10/100/1000 RJ45 gigabit, 100X/1000X SFP

10/100/1000T to 100Mbps/1000Mbps SFP industrial temperature PoE+ media converter. These converters support 802.3at, PoE+, 30W, LTPoE++ and 4-pair up to 70W. The IMC2000TP/SP-980 features Remote Power Cycle and Smart MissingLink™ (SML) and is fanless for silent operation.

Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.

The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.

Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.

In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.

Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.

Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.

Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.

Allied Telesis AT-IMC2000TP/SP-980. Rango máximo de transferencia de datos: 1000 Mbit/s, Interfaz de convertidor de entrada: 10Base-T, 100Base-T, 1000Base-T, Interfaz de convertidor de salida: 100Base-X, 1000Base-X. Conector fibra óptica: SFP, Tecnología de conectividad: Alámbrico. Longitud de onda: 850 nm, Potencia Tx (min): -9,5 dBmW, Potencia Tx (máx.): -4 dBmW. Color del producto: Gris, Código IP (International Protection): IP30, Seguridad: UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1.... Voltaje de entrada: 51 - 57 V

Rango máximo de transferencia de datos	1000 Mbit/s
Interfaz de convertidor de entrada	10Base-T, 100Base-T, 1000Base-T
Interfaz de convertidor de salida	100Base-X, 1000Base-X
Tipo de interfaz ethernet	Ethernet rápido, Gigabit Ethernet
Ethernet LAN, velocidad de transferencia de datos	10,100,1000 Mbit/s
Velocidad de redireccionamiento de paquetes (10 Mbps)	14880 pps
Velocidad de redireccionamiento de paquetes (100 Mbps)	148800 pps
Velocidad de redireccionamiento de paquetes (1 Gbps)	1488000 pps
Jumbo Frames, soporte	Si
Tramas Jumbo	10000
Soporte VLAN	Si
Auto MDI / MDI-X	Si
Auto-negociación	Si
Guardar y remitir	Si
Sistema de dúplex	Completo, Semi (dúplex)
Conector fibra óptica	SFP
Tecnología de conectividad	Alámbrico
Puertos de canal de fibra	1
Alimentación mediante Ethernet Plus (PoE +) Cantidad de puertos	1
Longitud de onda	850 nm
Potencia Tx (min)	-9,5 dBmW
Potencia Tx (máx.)	-4 dBmW
Potencia Rx (min)	-17 dBmW
Potencia Rx (máx.)	-3 dBmW
Interno	No
Indicadores LED	Si
Color del producto	Gris
Código IP (International Protection)	IP30
Montaje en carril DIN	Si
Seguridad	UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
Certificación	TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A
Voltaje de entrada	51 - 57 V
Energía sobre Ethernet (PoE)	Si
Ancho	111 mm
Profundidad	96 mm
Altura	35 mm
Peso	748 g
Intervalo de temperatura operativa	-40 - 75 °C
Intervalo de temperatura de almacenaje	-40 - 85 °C
Intervalo de humedad relativa para funcionamiento	5 - 95%
Intervalo de humedad relativa durante almacenaje	5 - 95%
Altitud de funcionamiento	0 - 3048 m
Certificados de sostenibilidad	RoHS
