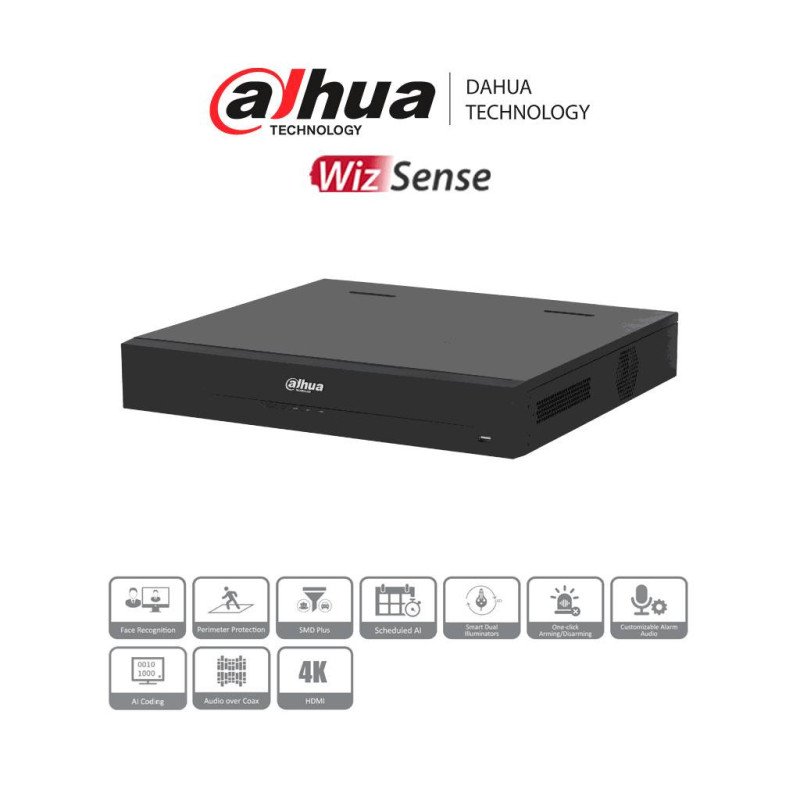

Dahua Technology DH-XVR5416L-4KL-I3, Negro, 3840 x 2160 Pixeles, H.264, H.264+, H.265, H.265+, G.711 A-law, G.711 μ-law, PCM, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, Event, General, Instantáneo, Smart, Tag
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Scheduled AI
This technology allows multiple AI functions to be set for one channel based on time frames, eliminating the need to manually configure the system to switch between functions each time. Scheduled AI greatly increases efficiency and widens the number of scenarios that the device can be used in.
Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.
One-click Arming/Disarming
With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.
Customizable Alarm Audio
Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.
AI Coding
Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.
Audio over Coax
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Dahua Technology DH-XVR5416L-4KL-I3. Color del producto: Negro, Máxima resolución de video: 3840 x 2160 Pixeles, Formatos de compresión de video: H.264, H.264+, H.265, H.265+. Tipo de interfaz ethernet: Gigabit Ethernet, Protocolos de red compatibles: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. Interfaz del HDD: SATA III, Capacidad máxima del HDD: 16 TB. Tipo de fuente de alimentación: Corriente alterna, Voltaje de entrada AC: 100 - 240 V, Consumo energético: 20 W. Ancho: 440 mm, Profundidad: 420,2 mm, Altura: 76 mm
| Color del producto | Negro |
| Máxima resolución de video | 3840 x 2160 Pixeles |
| Formatos de compresión de video | H.264, H.264+, H.265, H.265+ |
| Formatos de audio soportados | G.711 A-law, G.711 μ-law, PCM |
| Detección de perdida de video | Si |
| Detección de movimiento en video | Si |
| Resoluciones de reproducción soportadas | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Modo de reproducción | Event, General, Instantáneo, Smart, Tag |
| Canales de salida de audio | 1.0 canales |
| Conexión USB | Si |
| Tasa de bits | 6144 Kbit/s |
| Capacidad del rack | 1.5U |
| Certificación | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Canales de entrada de alarma | 16 |
| Canales de salida de alarma | 6 |
| puertos de entrada BNC | 16 |
| Número de puertos HDMI | 1 |
| Puertos de salida VGA (D-Sub) | 1 |
| Cantidad de puertos USB 2.0 | 1 |
| Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Puertos RS-485 | 1 |
| Cantidad de puertos eSATA | 1 |
| Puerto - RS-232 | 1 |
| Ethernet | Si |
| Tipo de interfaz ethernet | Gigabit Ethernet |
| Ethernet LAN (RJ-45) cantidad de puertos | 1 |
| Protocolos de red compatibles | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Número de HDDs soportados | 4 |
| Interfaz del HDD | SATA III |
| Capacidad máxima del HDD | 16 TB |
| Procesador incorporado | Si |
| Tipo de fuente de alimentación | Corriente alterna |
| Voltaje de entrada AC | 100 - 240 V |
| Consumo energético | 20 W |
| Ancho | 440 mm |
| Profundidad | 420,2 mm |
| Altura | 76 mm |
| Peso | 4,7 kg |
| Ancho del paquete | 529 mm |
| Profundidad del paquete | 499 mm |
| Altura del paquete | 211 mm |
| Peso del paquete | 6,9 kg |
| Intervalo de temperatura operativa | -10 - 55 °C |
| Intervalo de humedad relativa para funcionamiento | 10 - 90% |
