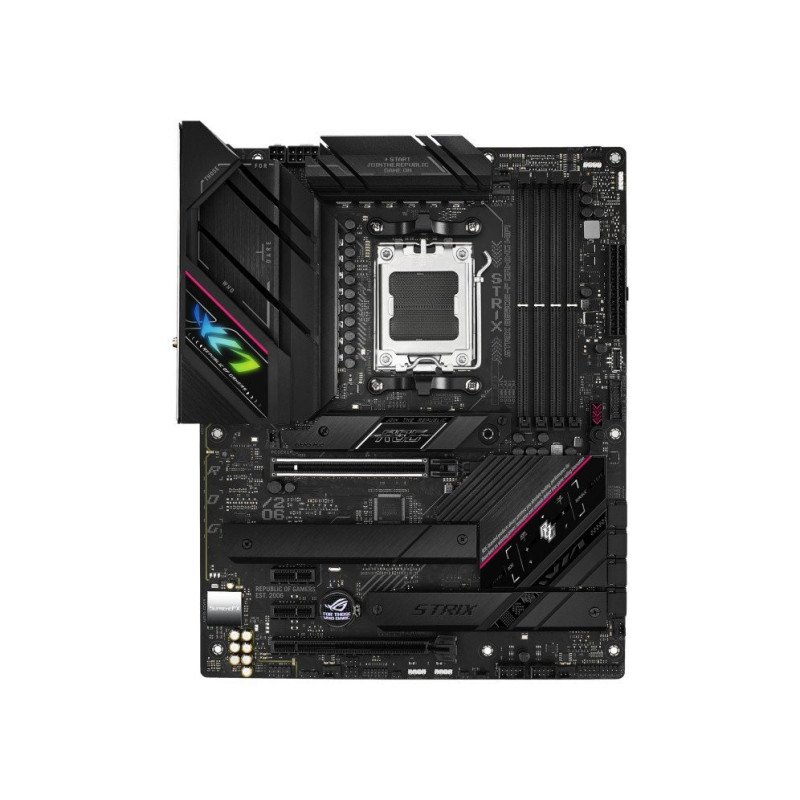

ROG STRIX B650E-F GAMING WIFIThis mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCEWith robust power delivery, speedy storage and memory, and comprehensive cooling, the Strix B650E-F brings high performance to every scenario.
Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot for increased durability and Q-Release for easy upgrades.
LEADING CONNECTIVITYThe ROG Strix B650E-F delivers next-gen connectivity for ultrafast data transfers and low-latency networking. An advanced audio solution allows you to pick out the smallest cues and home in on your opponents.
WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
2.5G ETHERNETLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
PLAY IN STYLESlick aesthetics and Aura Sync RGB controls let the ROG Strix B650E-F shine in every build.
UNDENIABLY ROG STRIXAn overall dark aesthetic is accented with punchy brand-centric details and a logo that glows with fully-customizable RGB lighting. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. Pair the Strix B650E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix B650E-F Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
ASUS ROG STRIX B650E-F GAMING WIFI. Fabricante de procesador: AMD, Socket de procesador: Zócalo AM5, Procesador compatible: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. tipos de memoria compatibles: DDR5-SDRAM, Memoria interna máxima: 128 GB, Tipo de ranuras de memoria: DIMM. Interfaces de disco de almacenamiento soportados: M.2, SATA III, Tipos de unidades de almacenamiento admitidas: HDD & SSD, Niveles RAID: 0, 1, 10. Tipo de interfaz ethernet: 2.5 Gigabit Ethernet, Controlador LAN: Intel I225-V, Estándar Wi-Fi: Wi-Fi 6E (802.11ax). Componente para: PC, Factor de forma: ATX, Familia del chipset: AMD
Fabricante de procesador | AMD |
Socket de procesador | Zócalo AM5 |
Procesador compatible | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen |
Sockets de procesador soportados | Zócalo AM5 |
tipos de memoria compatibles | DDR5-SDRAM |
Número de ranuras de memoria | 4 |
Memoria interna máxima | 128 GB |
Tipo de ranuras de memoria | DIMM |
Canales de memoria | Doble canal |
ECC | Si |
No ECC | Si |
Velocidades de reloj de memoria soportadas | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
Velocidad del reloj de memoria máxima admitida | 6400 MHz |
Memoria sin buffer | Si |
Interfaces de disco de almacenamiento soportados | M.2, SATA III |
Tipos de unidades de almacenamiento admitidas | HDD & SSD |
Número de HDDs soportados | 4 |
Número de unidades de almacenamiento compatibles | 7 |
Compatibilidad con RAID | Si |
Niveles RAID | 0, 1, 10 |
Soporte para proceso paralelo | No compatible |
USB 2.0, conectores | 2 |
Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
Conectores USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Número de conectores SATA III | 4 |
S/PDIF, conector de salida | Si |
Conector de audio en panel frontal | Si |
Conector de potencia ATX (24 pines) | Si |
Conector de ventilador CPU | Si |
Número de conectores a ventilador de chasis | 4 |
Conector de instrusión a chasis | Si |
Conectores de poder (4 pin) periferales (Molex) | 1 |
Conector de energía EPS (8-pin) | Si |
Número de conectores COM | 1 |
Encabezados Thunderbolt | 1 |
Conector eléctrico de 12 V | Si |
Conector para tiras LED RGB | Si |
Cantidad de puertos USB 2.0 | 4 |
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 4 |
Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) | 2 |
Cantidad de puertos tipo C USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Ethernet LAN (RJ-45) cantidad de puertos | 1 |
Número de puertos HDMI | 1 |
Número de puertos USB 3.2 Gen 2x2 Tipo C | 1 |
Versión HDMI | 2.1 |
Cantidad de DisplayPorts | 1 |
Versión de DisplayPort | 1.4 |
Salidas para auriculares | 1 |
Entrada de línea | Si |
Micrófono, jack de entrada | Si |
Conector para antena WiFi-AP | 2 |
Wifi | Si |
Ethernet | Si |
Tipo de interfaz ethernet | 2.5 Gigabit Ethernet |
Controlador LAN | Intel I225-V |
Estándar Wi-Fi | Wi-Fi 6E (802.11ax) |
Wi-Fi estándares | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Si |
Versión de Bluetooth | 5.2 |
Componente para | PC |
Factor de forma | ATX |
Familia del chipset | AMD |
Chipset | AMD B650 |
Canales de salida de audio | 7.1 canales |
Chip de sonido | Realtek ALC4080 |
Tipo de enfriamiento | Pasivo |
Alimentación | ATX |
Sistema operativo Windows soportado | Windows 11 x64 |
Ranuras PCI Express x1 (Gen 4.x) | 2 |
Ranuras PCI Express x16 (Gen 4.x) | 1 |
Ranuras PCI Express x16 (Gen 5.x) | 1 |
Número de ranuras M.2 (M) | 3 |
Tipos de BIOS | UEFI AMI |
BIOS, tamaño de memoria | 256 MB/s |
Ancho | 305 mm |
Profundidad | 244 mm |
Cables incluidos | SATA |
Manual de usuario | Si |
Botón para regresar a BIOS | Si |
