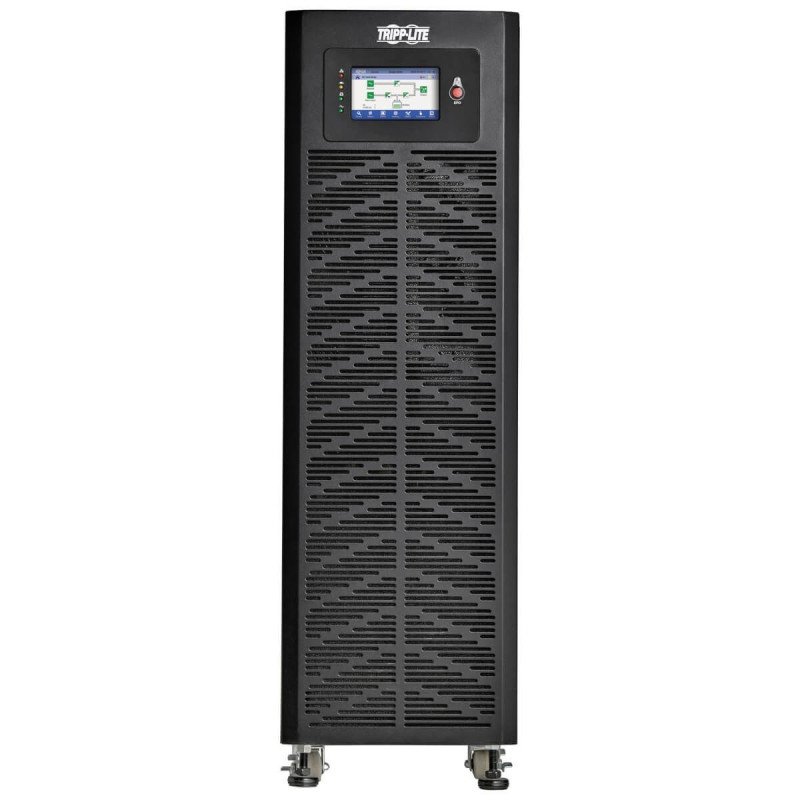

No break tripp lite s3m30k trifásico de doble conversión de 30 kva 3000 w 208v, 220v, 120v, 127v fp de uno, se requieren batería

Battery Backup and VFI Operation Protect Critical Loads
The SmartOnline® S3M30K IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 30kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.

Best-in-Class Footprint for Easy Integration into Your Network Application
The UPS market’s smallest footprint for 3-phase 208V systems lets you install the S3M30K in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M30K is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.

Efficient Operation and Design Reduces Cost of Ownership
ENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves up to 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<3%) improves generator compatibility. A low THDv (≤2%) and active power factor correction with DSP control improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Automatic and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.

External Batteries Supply Reliable Backup with Expandable Runtime Options
The S3M30K uses external battery cabinets, including BP240V40/40L, BP240V65/65L and BP240V100 (sold separately), to provide backup support in case of a power failure. These cabinets are available with or without internal batteries. No internal batteries are included with the S3M30K. A one-touch cold-start button powers up the UPS with battery power only.

Intuitive LCD Interface Delivers Important Performance Information at a Glance
The large five-inch touchscreen LCD panel displays critical operating conditions and diagnostic data, including battery and load status. Four LEDs provide information about AC, bypass, battery and fault status.

Remote Network Monitoring and Control Available 24 Hours a Day
The optional Java-free WEBCARDLXMINI network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. WEBCARDLXMINI also supports EnviroSense2 (sold separately), which monitors temperature, humidity and other environmental factors. Three MODBUS ports (RS-485, USB, RS-232) may also be used to monitor and manage the UPS. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.

Parallel Capability Provides Additional Capacity
Connect up to six S3M30K units in parallel using separate/shared battery cabinets for 180kVA maximum capacity or N+N fault tolerance redundancy.

Tripp Lite S3M30K. Topología UPS: Doble conversión (en línea), Capacidad de potencia de salida (VA): 30 kVA, Potencia de salida: 30000 W. Tipo de salida AC: Hardwire, Conector: Hardwire, Tipo de puerto USB: USB Tipo B. Factor de forma: Torre, Color del producto: Negro, Material de la carcasa: Acero. Ancho: 300 mm, Profundidad: 800,1 mm, Altura: 1000 mm. Cables incluidos: RS-232, Cable USB

Topología UPS	Doble conversión (en línea)
Capacidad de potencia de salida (VA)	30 kVA
Potencia de salida	30000 W
Forma de onda	Onda sinusoidal pura
Voltaje de entrada de operación (min)	120 V
Voltaje de entrada de operación (max)	220 V
Frecuencia de entrada	50/60 Hz
Voltaje de operación de salida (min)	120 V
Voltaje de operación de salida (max)	220 V
Frecuencia de salida	50/60 Hz
Regulación del voltaje de salida	±1%
Máxima corriente	125 A
Número de fases de entrada	3
Número de fases de salida	3
Eficiencia	93%
Eficiencia (modo ECO)	98,5%
Factor de poder	1
Factor de potencia de entrada	0,99
Factor de cima	3:1
Modo ECO	Si
Apagado de emergencia	Si
Corriente de entrada Distorsión Armónica Total (THD)	3%
Filtro de ruido EMI/RFI	Si
Nivel de ruido	68 dB
Funciones de protección de poder	Sobrevoltaje, Bajo voltaje
Alarma(s) audibles	Si
Modos de alarma audibles	Alarma de batería baja, Alarma de sobrecarga
País de origen	China
Tipo de salida AC	Hardwire
Conector	Hardwire
Puerto USB	Si
Cantidad de puertos USB 2.0	1
Tipo de puerto USB	USB Tipo B
Interfaz en serie	Si
Tipo de serie de interfaz	RS-232, RS-485
Puerto - RS-232	1
Ethernet LAN (RJ-45) cantidad de puertos	3
Arranque en frío	Si
Factor de forma	Torre
Color del producto	Negro
Material de la carcasa	Acero
Tipo de enfriamiento	Activo
Ventilador integrado	Si
Tipo de visualizador	LCD
Indicadores LED	Si
Intervalo de temperatura operativa	0 - 40 °C
Intervalo de temperatura de almacenaje	-15 - 60 °C
Intervalo de humedad relativa para funcionamiento	0 - 95%
Intervalo de humedad relativa durante almacenaje	0 - 95%
Altitud de funcionamiento	0 - 1000 m
Cumplimiento de sostenibilidad	Si
Certificados de sostenibilidad	ENERGY STAR, RoHS
Ancho	300 mm
Profundidad	800,1 mm
Altura	1000 mm
Peso	96,1 kg
Ancho del paquete	430 mm
Profundidad del paquete	929,9 mm
Altura del paquete	1195,1 mm
Peso del paquete	117,1 kg
Cables incluidos	RS-232, Cable USB
Manual de usuario	Si
Ancho de la caja principal	430 mm
Longitud de la caja	929,9 mm
Alto de la caja principal	1195,1 mm
Peso del envase completo	117,1 kg
Cantidad por caja	1 pieza
