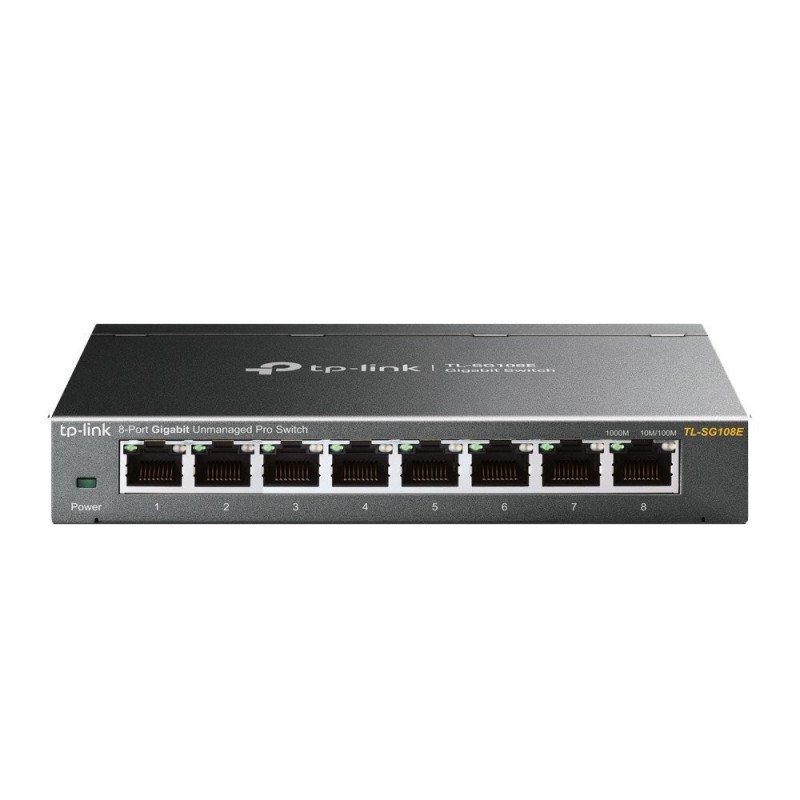

Switch TP-Link TL-SG108E, administrable, L2, Gigabit Ethernet (10/100/1000)
TP-Link TL-SG108E, administrable, L2, Gigabit Ethernet (10/100/1000)
The TL-SG108E 8-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG108E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG108E can save up to 80% of power consumption, making it an eco-friendly solution for your business network.
Simple & Effective Management
TP-LINK’s Gigabit Easy Smart switch, TL-SG108E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG108E 8-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG108E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Ease of Use
TL-SG108E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
TP-Link TL-SG108E. Tipo de interruptor: Gestionado, Capa del interruptor: L2. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 8. Tabla de direcciones MAC: 4000 entradas, Capacidad de conmutación: 16 Gbit/s. Estándares de red: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Voltaje de entrada DC: 9 V
Tipo de interruptor | Gestionado |
Capa del interruptor | L2 |
Calidad de servicio (QoS) soporte | Si |
Administación basada en web | Si |
Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 8 |
Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
Estándares de red | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Espejeo de puertos | Si |
Adición de vínculos | Si |
Control de transmisión de tormentas | Si |
Limitar tasa | Si |
Auto MDI / MDI-X | Si |
Auto-negociación | Si |
Soporte VLAN | Si |
Número de VLANs | 32 |
Tabla de direcciones MAC | 4000 entradas |
Capacidad de conmutación | 16 Gbit/s |
Rendimiento | 11,9 Mpps |
Guardar y remitir | Si |
Número de colas | 4 |
Jumbo Frames, soporte | Si |
Tramas Jumbo | 16000 |
Memoria intermedia de paquetes | 1,5 MB |
IGMP | Si |
Número de grupos de multidifusión filtrados | 128 |
Color del producto | Negro |
Material de la carcasa | Metal |
Indicadores LED | Si |
Certificación | FCC, CE, RoHS |
Fuente de alimentación incluida | Si |
Voltaje de entrada AC | 100 - 240 V |
Frecuencia de entrada AC | 50 - 60 Hz |
Voltaje de entrada DC | 9 V |
Corriente de entrada | 0.6 A |
Energía sobre Ethernet (PoE) | No |
Intervalo de temperatura operativa | 0 - 40 °C |
Intervalo de temperatura de almacenaje | -40 - 70 °C |
Intervalo de humedad relativa para funcionamiento | 10 - 90% |
Intervalo de humedad relativa durante almacenaje | 5 - 90% |
Disipación del calor | 12,55 BTU/h |
Ancho | 158 mm |
Profundidad | 101 mm |
Altura | 25 mm |
Cables incluidos | Corriente alterna |
Manual de usuario | Si |
Tipo de embalaje | Caja |
Código de Sistema de Armomización (SA) | 85176990 |
Ficha técnica
- Cantidad de puertos básicos Ethernet (RJ-45)
- 8
- Capacidad de switcheo
- 16 Gbit/s
- Energía sobre Ethernet (PoE)
- No
- Fuente de alimentación incluida
- Sí
- Tabla de direcciones MAC
- 4000 entradas
- Tipo de puerto básico de conmutación Ethernet (RJ-45)
- Gigabit Ethernet (10/100/1000)
- Tipo de switch
- Administrable
Referencias Específicas
- upc
- 845973021856
- ean13
- 0845973021856
- Nº Pieza fabricante (NPM)
- TL-SG108E
