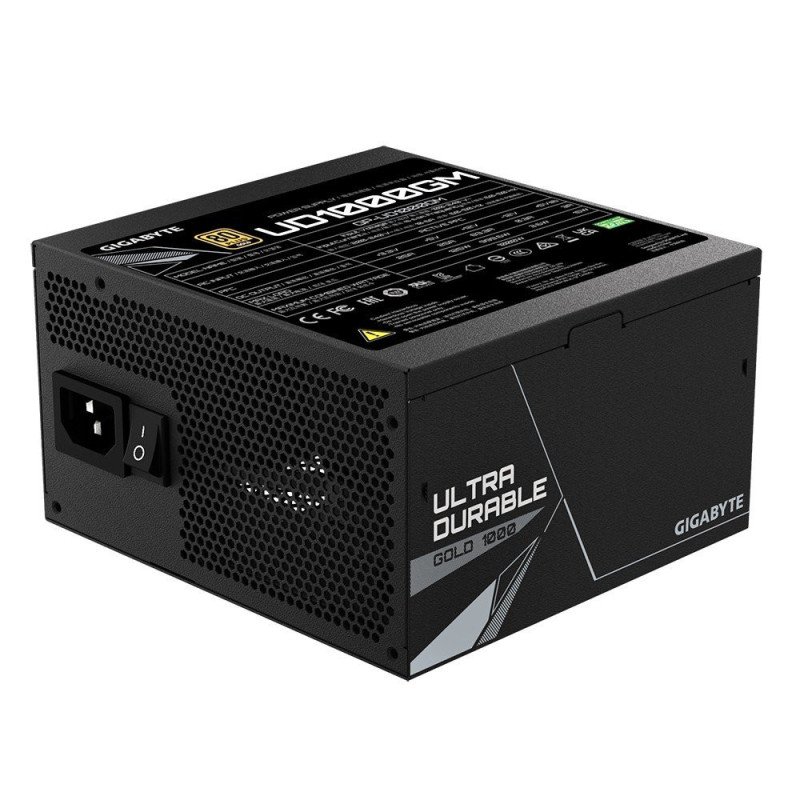

Fuente de poder Gigabyte1000w, 80 plus Gold, negro, ATX, modular
search
  • Fuente de poder Gigabyte1000w, 80 plus Gold, negro, ATX, modular
  • Fuente de poder Gigabyte1000w, 80 plus Gold, negro, ATX, modular
  • Fuente de poder Gigabyte1000w, 80 plus Gold, negro, ATX, modular

Fuente de poder Gigabyte1000w, 80 plus Gold, negro, ATX, modular

$2,034.48

Gigabyte UD1000GM, 1000 W, 100, 240 V, 50, 60 Hz, 15, 6.5 A, Activo, 125 W

Cantidad
Agotado, llame

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

Gigabyte UD1000GM. Potencia total: 1000 W, Voltaje de entrada AC: 100 - 240 V, Frecuencia de entrada AC: 50 - 60 Hz. Alimentador de energía para tarjeta madre: 20+4 pin ATX, Longitud del cable de alimentación de la placa base: 61 cm, Longitud del cable de alimentación CPU: 60 cm. Utilizar con: PC, Certificación 80 PLUS: 80 PLUS Gold, Tecnología de rodamientos: HDB. Color del producto: Negro, Diámetro de ventilador: 12 cm, Número de ventiladores: 1 Ventilador(es). Cables incluidos: CPU, PCIe, Peripheral (Molex), SATA

Potencia total 1000 W
Voltaje de entrada AC 100 - 240 V
Frecuencia de entrada AC 50 - 60 Hz
Corriente de entrada 15 - 6.5 A
Corrección del factor de potencia tipo (PFC) Activo
Potencia combinada (3,3 V) 125 W
Potencia combinada (+12 V) 999,6 W
Potencia combinada (+5 V) 125 W
Potencia combinada (-12V) 3,6 W
Potencia combinada (+5 VSB) 15 W
Corriente máxima de salida (+3.3V) 25 A
Corriente máxima de salida (+12V) 83,3 A
Corriente máxima de salida (+5V) 25 A
Corriente máxima de salida (-12V) 0,3 A
Corriente máxima de salida (+5Vsb) 3 A
Tiempo de espera 16 ms
Eficiencia 90%
Funciones de protección de poder Sobreintensidad, Sobretensión, Sobrevoltaje, Cortocircuito, Bajo voltaje
Alimentador de energía para tarjeta madre 20+4 pin ATX
Conectores de poder (4 pin) periferales (Molex) 3
Longitud del cable de alimentación de la placa base 61 cm
Número de conectores de energía SATA 8
Conector de alimentación EPS (4+4 pines) Si
Conectores de poder PCI Express (6 + 2 pin) 6
CPU conector de alimentación (4 +4 pines) Si
Longitud del cable de alimentación CPU 60 cm
Conector de poder ATX (20 + 4 pin) Si
Conector de poder floppy 1
Tipo de cableado Modular
Utilizar con PC
Certificación 80 PLUS 80 PLUS Gold
Tecnología de rodamientos HDB
Tiempo medio entre fallos 100000 h
Color del producto Negro
Diámetro de ventilador 12 cm
Número de ventiladores 1 Ventilador(es)
Ubicación de ventilador Superior
Interruptor de encendido/apagado integrado Si
Cables incluidos CPU, PCIe, Peripheral (Molex), SATA
Ancho 140 mm
Profundidad 150 mm
Altura 86 mm
Tipo de embalaje Caja
Código de Sistema de Armomización (SA) 84733020
Gigabyte
GP-UD1000GM

Ficha técnica

Alimentador de energía para tarjeta madre
20+4 pin ATX
Certificación 80 PLUS
80 PLUS Gold
Conectores de alimentación periféricos (Molex) (4 pines)
3
Sistemas usuarios
PC
Voltaje de entrada CA
100 - 240 V

Referencias Específicas

upc
810075651904
ean13
4719331552480
Nº Pieza fabricante (NPM)
GP-UD1000GM
