UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Direct Digital VRM DesignTo ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
PCIe 5.0 x4 M.2 ConnectorThe PCIe 5.0 x4 M.2 Slot supports the latest M.2 2280 form factor.
AMD EXPO™ and Intel® XMP 3.0 User ProfileDefine and create your own SPD profile into Native, EXPO and XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.
Shielded Memory RoutingAll memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
EXPO and XMP Dual SupportGIGABYTE AM5 MB supports both AMD EXPO™ and/or Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
DDR5 Auto BoosterAutomatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click
OUTSTANDING THERMAL DESIGNGIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
M.2 Thermal Guard III with Active CoolingM.2 Thermal Guard III with Active Cooling constructed with 6X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of M.2 SSDs may cause, especially under heavy workload. The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.
SMART FAN 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
CONNECTIVITYGIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
802.11ax Wi-Fi 6EThe latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Connecting the Future - Front USB 3.2 Gen 2x2 Type-C®Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
Rear USB 3.2 Gen 2 Type-C® with DisplayPort™ Alternate ModeDisplayPort™ over USB Type-C® enables the delivery of full DisplayPort A/V performance (driving monitor resolutions of 4K and beyond), SuperSpeed USB (USB 3.2 Gen 2) 10Gbps data transition and power delivery with the convenience of reversible plug orientation and cable direction.
True High-Fidelity Music (Realtek ALC4080) Paired with Realtek's latest ALC4080 Codec, playback for surround sound audio and DSD enabled music are easier than ever.
DTS :X® UltraRecreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs.
DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.
PERSONALIZATIONGIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
RGB Fusion Multi-Zone Light Show DesignNow offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Multi-keyA multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
ULTRA DURABLEGIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
EZ-LatchWith GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.
Q-Flash PlusUpdate the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

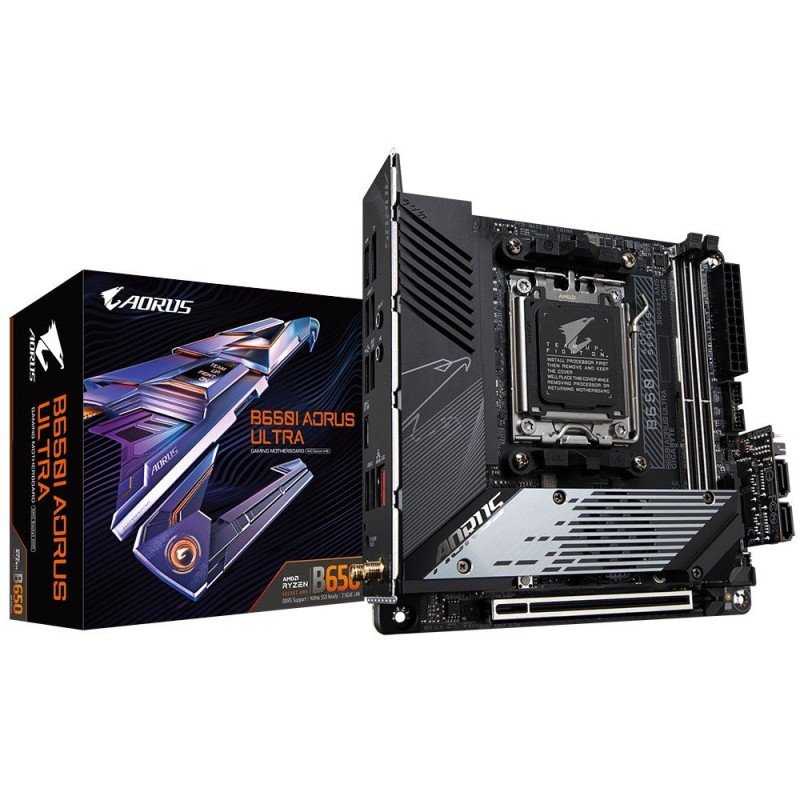

Gigabyte B650I AORUS ULTRA (REV. 1.0). Fabricante de procesador: AMD, Socket de procesador: Zócalo AM5, Procesador compatible: AMD Ryzen™ 7. tipos de memoria compatibles: DDR5-SDRAM, Memoria interna máxima: 64 GB, Tipo de ranuras de memoria: DIMM. Interfaces de disco de almacenamiento soportados: M.2, SATA III, Tipos de unidades de almacenamiento admitidas: HDD & SSD, Niveles RAID: 0, 1, 5, 10. Tipo de interfaz ethernet: 2.5 Gigabit Ethernet, Estándar Wi-Fi: Wi-Fi 6E (802.11ax), Wi-Fi estándares: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Componente para: PC, Factor de forma: mini ITX, Familia del chipset: AMD
Fabricante de procesador | AMD |
Socket de procesador | Zócalo AM5 |
Procesador compatible | AMD Ryzen™ 7 |
Máx.número de procesador SMP | 1 |
tipos de memoria compatibles | DDR5-SDRAM |
Número de ranuras de memoria | 2 |
Memoria interna máxima | 64 GB |
Tipo de ranuras de memoria | DIMM |
Canales de memoria | Doble canal |
ECC | Si |
No ECC | Si |
Velocidades de reloj de memoria soportadas | 4400,4800,5200,5600,6000,6200,6400 MHz |
Memoria sin buffer | Si |
Interfaces de disco de almacenamiento soportados | M.2, SATA III |
Tipos de unidades de almacenamiento admitidas | HDD & SSD |
Compatibilidad con RAID | Si |
Niveles RAID | 0, 1, 5, 10 |
HDCP | Si |
USB 2.0, conectores | 1 |
Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
Conectores USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Número de conectores SATA III | 4 |
Conector de audio en panel frontal | Si |
Conector de panel delantero | Si |
Conector de potencia ATX (24 pines) | Si |
Conector de ventilador CPU | Si |
Número de conectores a ventilador de chasis | 4 |
Encabezados Thunderbolt | 2 |
Conector eléctrico de 12 V | Si |
Conector para tiras LED RGB | Si |
Cantidad de puertos USB 2.0 | 2 |
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) | 2 |
Cantidad de puertos tipo C USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
Ethernet LAN (RJ-45) cantidad de puertos | 1 |
Número de puertos HDMI | 1 |
Versión HDMI | 2.1 |
Cantidad de DisplayPorts | 1 |
Versión de DisplayPort | 1.4 |
Conector para antena WiFi-AP | 2 |
Wifi | Si |
Ethernet | Si |
Tipo de interfaz ethernet | 2.5 Gigabit Ethernet |
Estándar Wi-Fi | Wi-Fi 6E (802.11ax) |
Wi-Fi estándares | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Modelo de controlador WLAN | AMD RZ616 |
Bluetooth | Si |
Versión de Bluetooth | 5.2 |
Componente para | PC |
Factor de forma | mini ITX |
Familia del chipset | AMD |
Chipset | AMD B650 |
Canales de salida de audio | 7.1 canales |
Monitoreo de la salud de PC | Ventilador, Temperatura, Tensión |
Sistema operativo Windows soportado | Windows 10 x64, Windows 11 x64 |
Tipos de BIOS | UEFI AMI |
BIOS, tamaño de memoria | 256 MB/s |
Versión ACPI | 5.0 |
Jumper Clear CMOS | Si |
Versión de la interfaz de administración de escritorio (DMI) | 2.7 |
Versión de BIOS de administración del sistema (SMBIOS) | 2.7 |
Ancho | 170 mm |
Profundidad | 170 mm |
Cables incluidos | SATA |
Controladores incluidos | Si |
