Tarjeta con puertos de red gigabit Lenovo AUKP, Interno, Alámbrico, PCI Express, Ethernet, 10000 Mbit/s, Negro, Verde
Tarjeta con puertos de red gigabit Lenovo AUKP, Interno, Alámbrico, PCI Express, Ethernet, 10000 Mbit/s, Negro, Verde
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

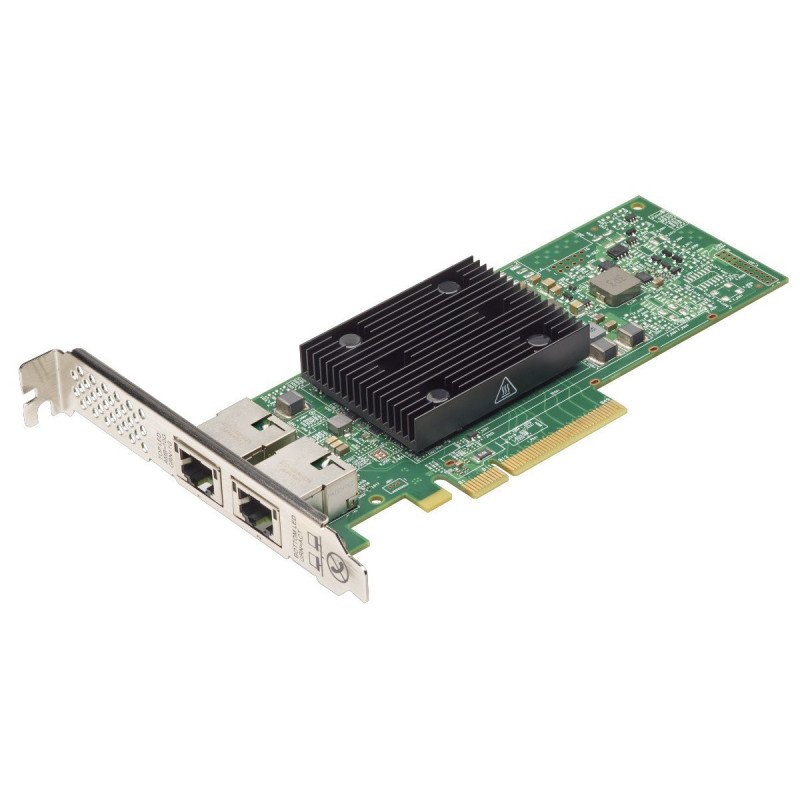

The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
Lenovo AUKP. Interno. Tecnología de conectividad: Alámbrico, Interfaz de host: PCI Express, Interfaz: Ethernet. Rango máximo de transferencia de datos: 10000 Mbit/s. Color del producto: Negro, Verde
Tecnología de conectividad | Alámbrico |
Interfaz de host | PCI Express |
Interfaz | Ethernet |
Ethernet LAN (RJ-45) cantidad de puertos | 2 |
Rango máximo de transferencia de datos | 10000 Mbit/s |
Estándares de red | IEEE 802.3ab, IEEE 802.3an |
Ethernet LAN, velocidad de transferencia de datos | 10,100,1000,10000 Mbit/s |
Tecnología de cableado | 10GBase-T |
Jumbo Frames, soporte | Si |
Soporte iSCSI | Si |
Distancia de funcionamiento máximo | 100 m |
Interno | Si |
Color del producto | Negro, Verde |
Certificación | CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge |
Intervalo de temperatura de almacenaje | -40 - 65 °C |
Intervalo de humedad relativa para funcionamiento | 5 - 95% |
Intervalo de humedad relativa durante almacenaje | 5 - 95% |
Ancho | 69 mm |
Profundidad | 168 mm |
Altura | 15 mm |
Código de Sistema de Armomización (SA) | 85176990 |
Ficha técnica
- Estándar de cableado
- IEEE 802.3ab, IEEE 802.3an
- Interfaz
- Ethernet
- Interfaz del host
- PCI Express
- Interno
- Sí
- Rango máximo de transferencia de datos
- 10000 Mbit/s
- Tecnología de conectividad
- Alámbrico
Referencias Específicas
- upc
- 889488433612
- ean13
- 0889488433612
- Nº Pieza fabricante (NPM)
- 7ZT7A00496
