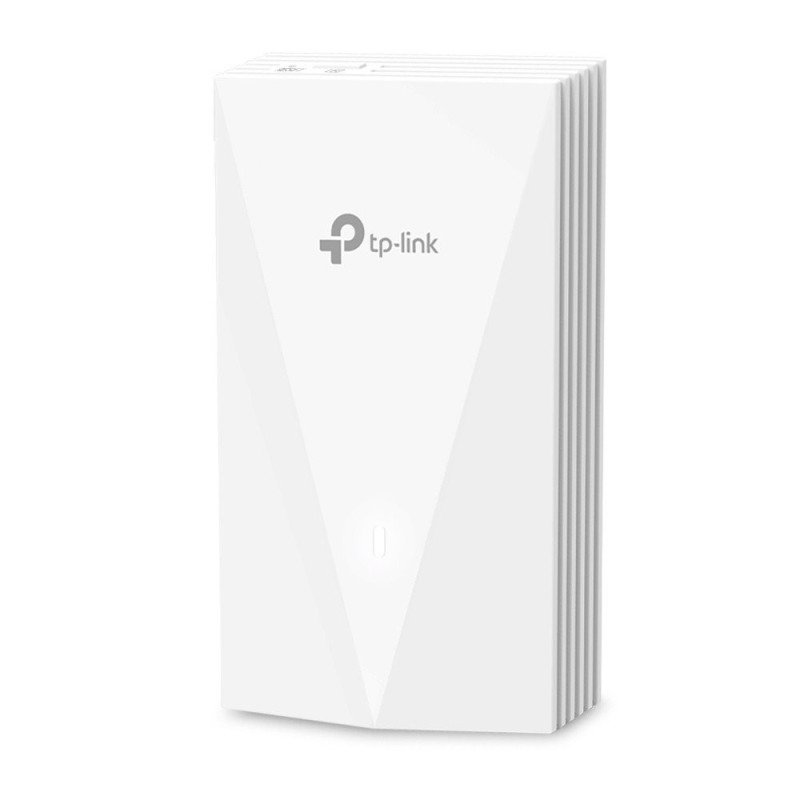

Access Point AX3000 Wi-Fi (EAP655-Wall)

Match Your Room
with AX3000 WiFi 6
AX3000 Wall Plate WiFi 6 Access Point

AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz

High-Efficiency WiFi 6
More connected devices enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

160 MHz Channel
Double the data at peak transmission times on a
single stream with HE160

Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption

Seamless Roaming
Uninterrupted streaming when moving between APs

Four Gigabit Ports
Three downlink gigabit ports, one with PoE pass-through

802.3af/at PoE Support
Flexible and convenient deployment

Quick, Simplified Installation
Compatible with 86 mm & EU & US standard junction box

Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps

Better User Experience with High-Performance
WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page

WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.

Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port

Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.

TP-Link Omada EAP655-Wall. Rango máximo de transferencia de datos: 2402 Mbit/s, Velocidad máxima de transferencia de datos (2,4 GHz): 574 Mbit/s, Velocidad máxima de transferencia de datos (5 GHz): 2402 Mbit/s. Algoritmos de seguridad soportados: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, Características de identificador de conjunto de servicios (SSID, Service Set Identifier): Multiple SSIDs. Conexión WAN: Ethernet (RJ-45). Consumo energético: 12 W. Ubicación: Pared, Color del producto: Blanco, Certificación: FCC, RoHS

2,4 GHz	Si
5 GHz	Si
6 GHz	No
Rango máximo de transferencia de datos	2402 Mbit/s
Velocidad máxima de transferencia de datos (2,4 GHz)	574 Mbit/s
Velocidad máxima de transferencia de datos (5 GHz)	2402 Mbit/s
Ethernet LAN, velocidad de transferencia de datos	10,100,1000 Mbit/s
Frecuencia de banda	2.4, 5 GHz
Estándares de red	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Tecnología de cableado	10/100/1000Base-T(X)
Número de usuarios	100 usuario(s)
Selección automática de canal	Si
Wi-Fi Multimedia (WMM)/(WME)	Si
Soporte VLAN	Si
Limitar tasa	Si
Aislamiento inalámbrico	Si
Band steering (optimización de rendimiento)	Si
Equidad de conexión (ATF)	Si
Calidad de servicio (QoS) soporte	Si
BeamForming (conformación de haces)	Si
Potencia de transmisión (CE)	20 - 23 - 26 dbm
Potencia de transmisión (FCC)	21 - 21 dbm
Algoritmos de seguridad soportados	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise
MAC, filtro de direcciones	Si
Filtro de dirección IP	Si
Características de identificador de conjunto de servicios (SSID, Service Set Identifier)	Multiple SSIDs
Número de SSID admitidos	16
Servicio de autenticación remota de llamadas de usuarios (RADIUS)	Si
Lista de Control de Acceso (ACL)	Si
Administación basada en web	Si
Syslog	Si
Firmware actualizable	Si
Ethernet LAN (RJ-45) cantidad de puertos	4
Conexión WAN	Ethernet (RJ-45)
Enchufe de entrada de CC	Si
Energía sobre Ethernet (PoE)	Si
Consumo energético	12 W
Ubicación	Pared
Color del producto	Blanco
Ranura para cable de seguridad	No
Botón de restaurar	Si
Indicadores LED	Si
Certificación	FCC, RoHS
Tipo de antena	Interno
Cantidad de antenas	2
Ganancia de la antena (max)	5 dBi
Sistemas operativos compatibles	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Ancho	143 mm
Profundidad	86 mm
Altura	42,6 mm
Ancho del paquete	117 mm
Profundidad del paquete	184 mm
Altura del paquete	56 mm
Peso del paquete	400 g
Tipo de embalaje	Caja
Número de productos incluidos	1 pieza
Kit de montaje	Si
Intervalo de humedad relativa para funcionamiento	10 - 90%
Intervalo de temperatura operativa	0 - 40 °C
Intervalo de temperatura de almacenaje	-40 - 70 °C
Intervalo de humedad relativa durante almacenaje	5 - 90%
Certificados de sostenibilidad	RoHS
