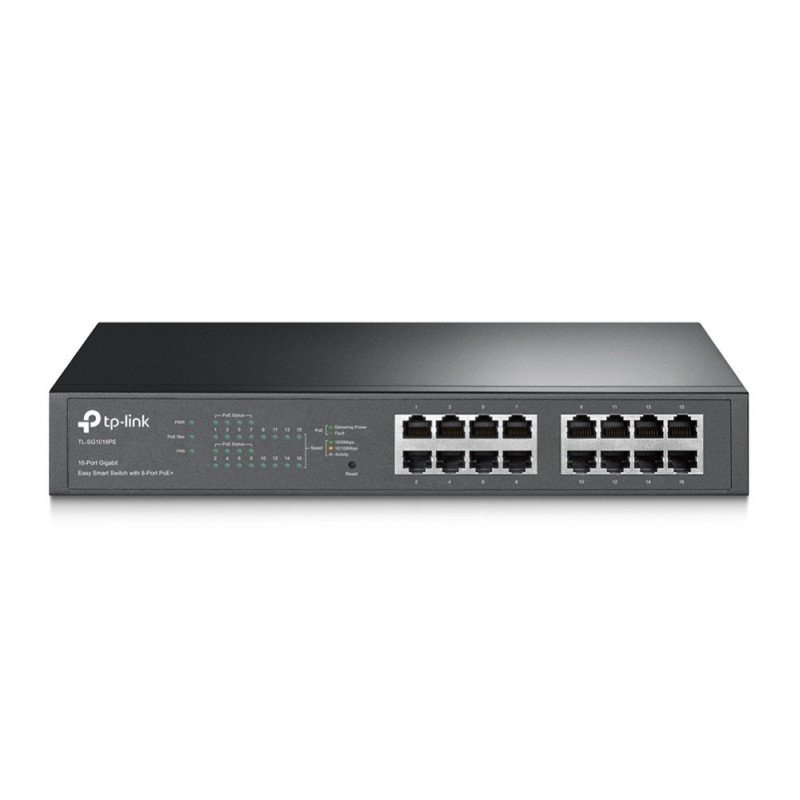

Switch JetStream Gigabit (TL-SG1016PE)

What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.

Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

TP-Link TL-SG1016PE. Tipo de interruptor: Gestionado, Capa del interruptor: L2. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 16. Bidireccional completo (Full duplex). Tabla de direcciones MAC: 8000 entradas, Capacidad de conmutación: 32 Gbit/s. Estándares de red: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Energía sobre Ethernet (PoE). Montaje en rack

Tipo de interruptor	Gestionado
Capa del interruptor	L2
Calidad de servicio (QoS) soporte	Si
Administación basada en web	Si
Cantidad de puertos básicos de conmutación RJ-45 Ethernet	16
Puertos tipo básico de conmutación RJ-45 Ethernet	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (cobre), cantidad de puertos	16
Estándares de red	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Soporte 10G	No
Tecnología de cableado ethernet de cobre	10BASE-T, 100BASE-TX, 1000BASE-T
Tipos de cable soportados	Cat3, Cat4, Cat5, Cat5e, Cat6
Espejeo de puertos	Si
Bidireccional completo (Full duplex)	Si
Soporte de control de flujo	Si
Adición de vínculos	Si
Control de transmisión de tormentas	Si
Limitar tasa	Si
Auto MDI / MDI-X	Si
Auto-negociación	Si
Soporte VLAN	Si
Funciones de LAN virtual	Port-based VLAN, Tagged VLAN
Número de VLANs	4000
Tabla de direcciones MAC	8000 entradas
Capacidad de conmutación	32 Gbit/s
Rendimiento	23,8 Mpps
Guardar y remitir	Si
Número de colas	4
Jumbo Frames, soporte	Si
Tramas Jumbo	10000
IGMP	Si
Seguridad de puerto estático	Si
Protección contra loops	Si
Montaje en rack	Si
Apilable	No
Color del producto	Negro
Indicadores LED	Si
Número de ventiladores	1 Ventilador(es)
Certificación	FCC, CE, RoHS
Fuente de alimentación incluida	Si
Voltaje de entrada AC	100 - 240 V
Frecuencia de entrada AC	50 - 60 Hz
Consumo de energía (max)	124,4 W
Energía sobre Ethernet (PoE)	Si
Alimentación mediante Ethernet Plus (PoE +) Cantidad de puertos	8
Potencia por puerto de alimentación a través de Ethernet (PoE)	30 W
Potencia a través de Ethernet (PoE) Presupuesto	110 W
Intervalo de temperatura operativa	0 - 40 °C
Intervalo de temperatura de almacenaje	-40 - 70 °C
Intervalo de humedad relativa para funcionamiento	10 - 90%
Intervalo de humedad relativa durante almacenaje	5 - 90%
Ancho	294 mm
Profundidad	180 mm
Altura	44 mm
Cables incluidos	Corriente alterna
Estante de montaje	Si
Código de Sistema de Armomización (SA)	85176990
